Twin Handle Cascade Basin Mixer · Polished Gold — Arc Series · Form 09
Regular price
$112.00
A widespread basin mixer drawn as a single graceful arch with twin sculpted handles. Built for master baths and considered luxury vanities.
Architectural luxury, drawn in three pieces.

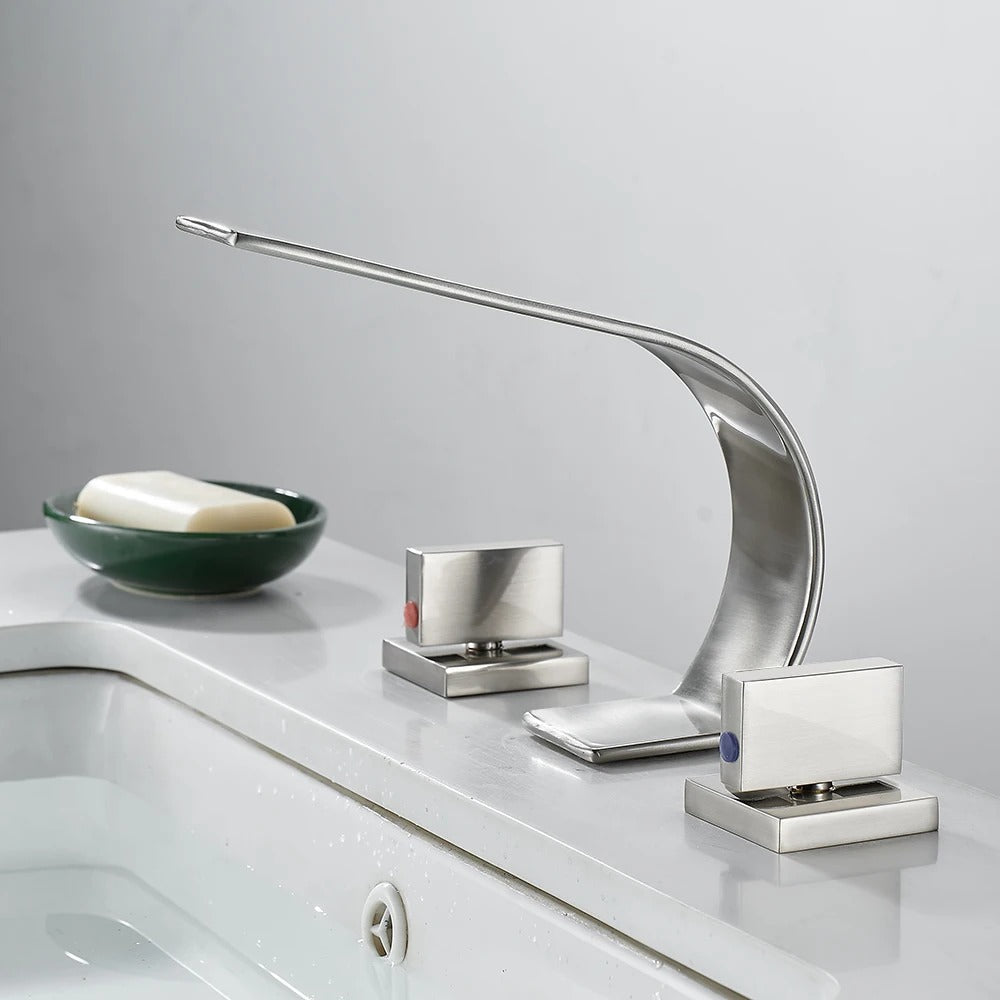

Arc 09 is built for the bathroom that has space to breathe. A widespread three-hole installation — a tall arched spout flanked by two architectural square handles, mounted with deliberate distance between them. The configuration is borrowed from European master bath fixtures and refined into a cleaner contemporary silhouette.
The spout itself is sculpted as a single bold arch, drawing water from one handle and delivering it through a wide flat outlet at the far end. The twin handles — finished in matching geometry — provide independent hot and cold control. The result is a fixture that turns the simple act of washing into something closer to a ritual.
This is a 3-hole widespread basin mixer. It requires a vanity or basin with three pre-drilled holes spaced 8 inches apart. It will not fit single-hole basins. Please verify your installation before ordering.
01 — The Form
A single arch, two sculpted valves.

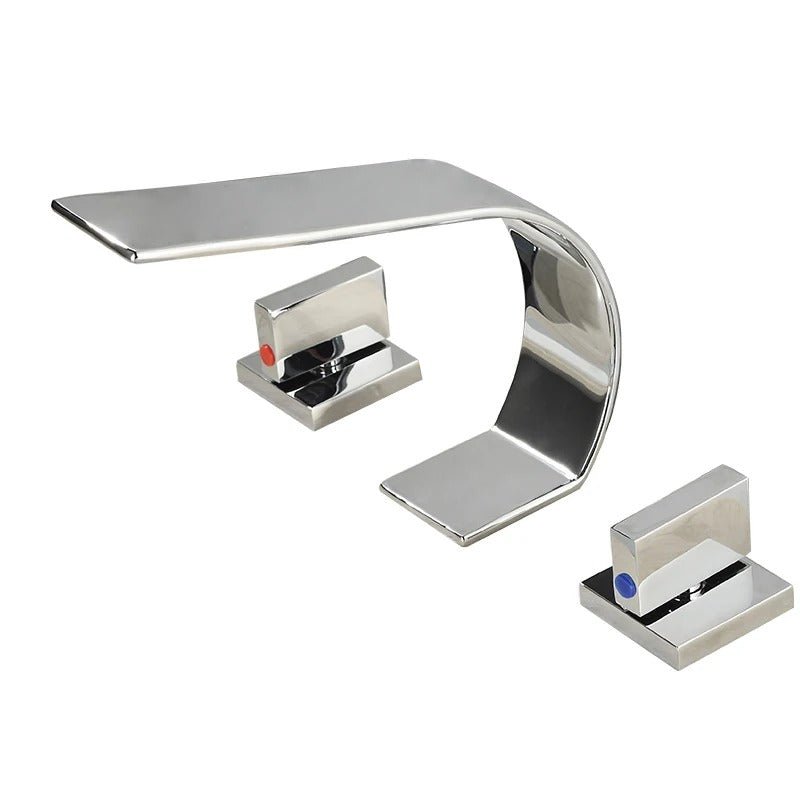

The spout is the visual centerpiece — a tall sweeping arch that rises from one base, curves over the basin, and finishes in a wide flat outlet that delivers a soft waterfall. The form has presence without weight. The mirror-polished finish amplifies the geometry.

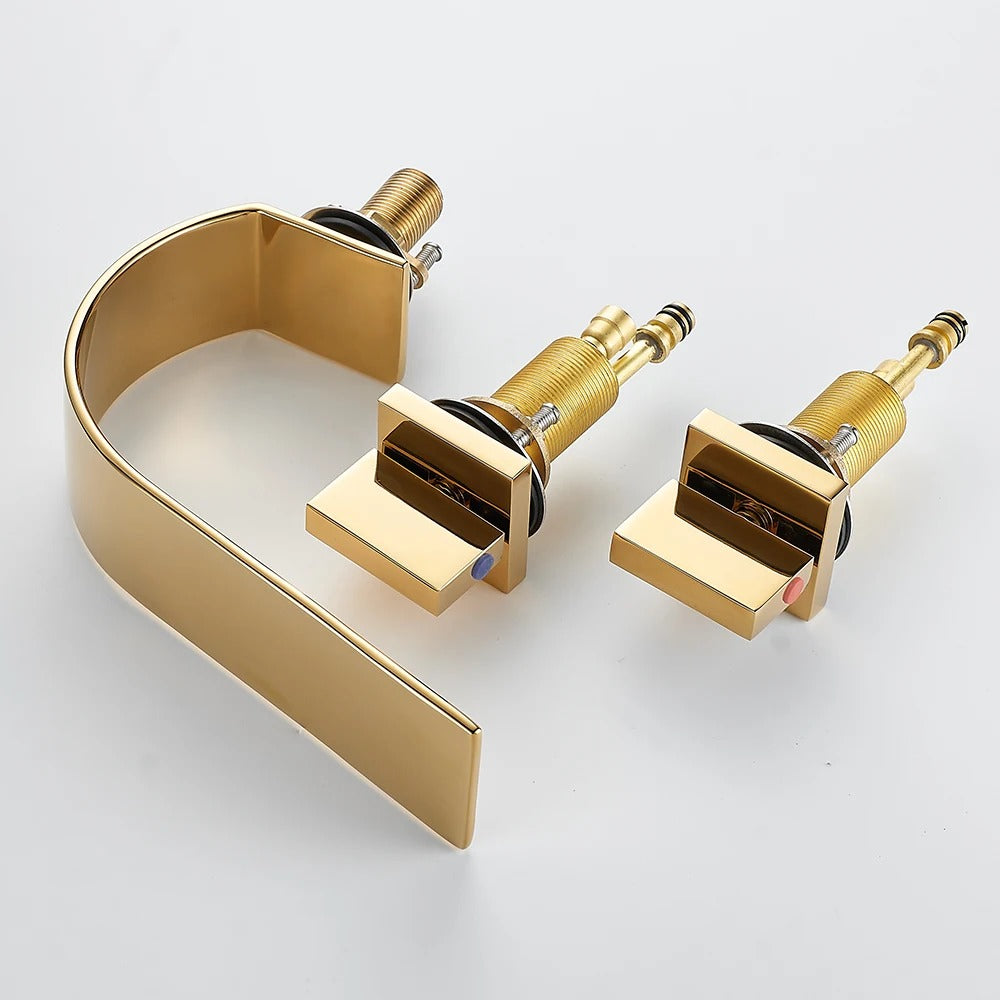

The handles are deliberately architectural — square in profile, set flush against the deck, finished in matched geometry. Together with the arch spout, they form a composition that reads as three considered objects rather than a single faucet. The widespread layout creates negative space across the deck, giving the entire vanity room to breathe.
02 — Two Finishes
One form, two personalities.

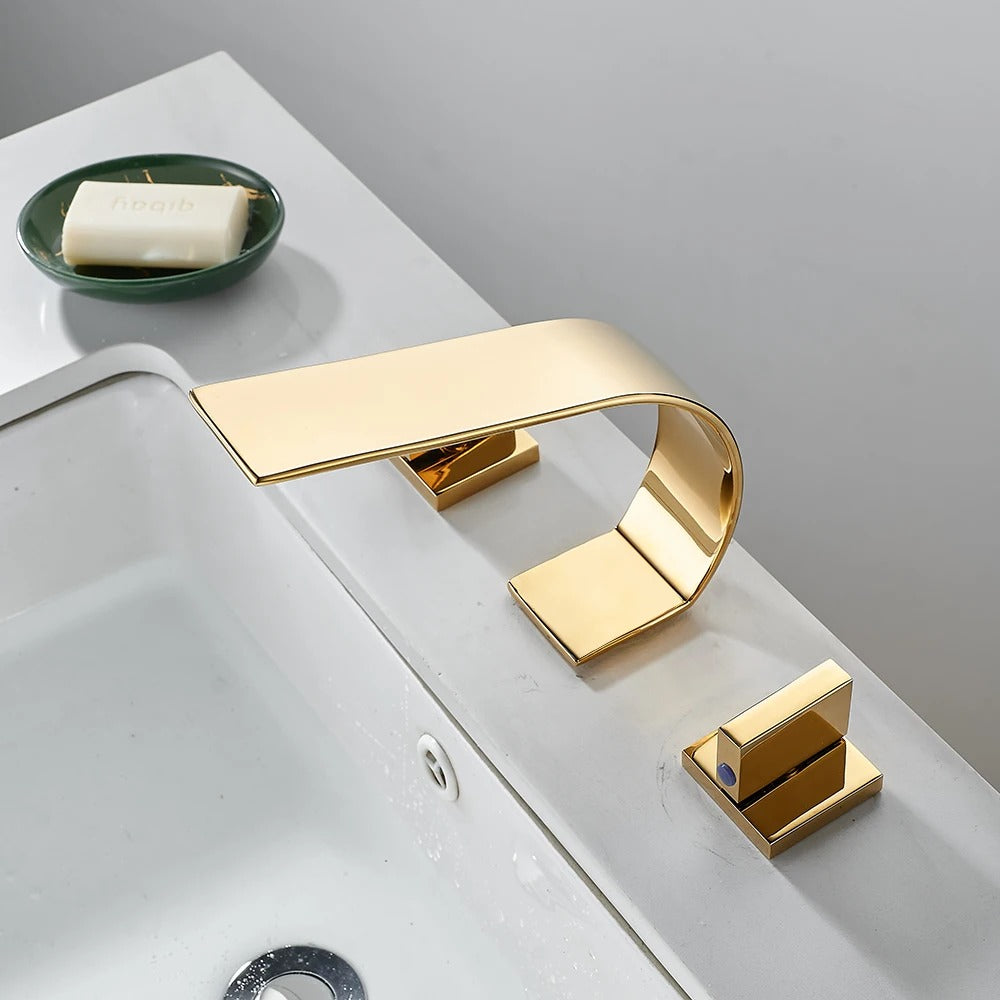

The luxury choice. Deep mirror gold catches light from every angle, turning the arch into a sculptural focal point. Pairs naturally with white marble, cream stone, dark wood, and considered traditional or modern luxury palettes.
The classic choice. Bright reflective chrome carries the arch as a clean mirror line. Pairs naturally with white quartz, glass, stainless steel, and timeless contemporary master bathrooms.
03 — The Function
Considered, not complicated.

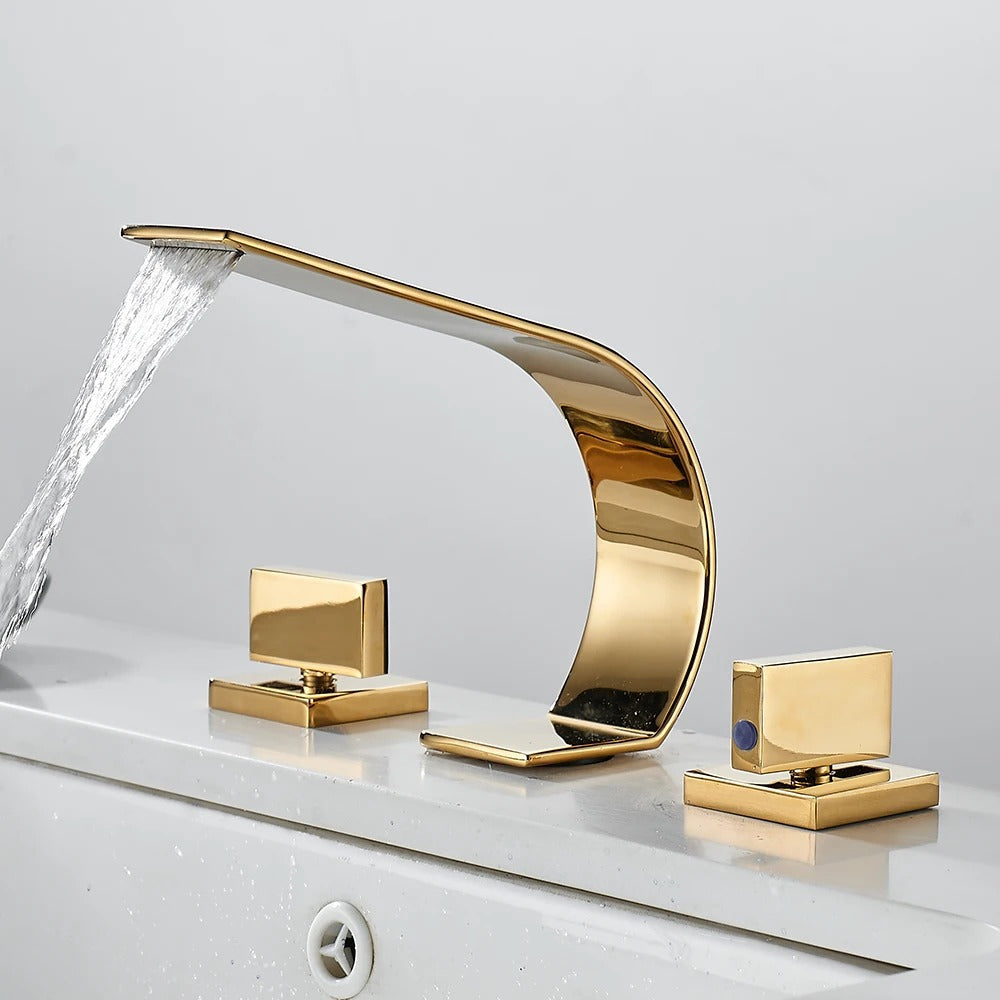

- Waterfall cascade flow. The wide flat outlet delivers a soft sheet of water — gentle on the hands, quiet in the basin, low splash.
- Twin handle control. Independent hot and cold valves give precise temperature blending — the traditional widespread experience refined for modern use.
- Widespread 3-hole installation. Standard 8-inch centre-to-centre spacing, compatible with most premium vanities.
- Ceramic disc cartridges. Both valves use ceramic disc technology, rated for 500,000 open and close cycles without drip or play.
04 — The Material
Solid brass. Two finishes.
- Body — Solid brass core, lead-free certified for potable water
- Finish — Choice of Polished Gold or Polished Chrome, electroplated for depth and durability
- Cartridges — Ceramic disc, rated for 500,000 cycles per valve
- Supply lines — Stainless steel braided, pre-installed on each valve
- Aerator — Concealed within the spout outlet, waterfall flat-flow (1.2 GPM / 4.5 LPM)
Both finishes are applied through precision electroplating — a process that bonds the colour deep into the brass beneath. Polished Gold develops a slightly warmer tone over years of use as the natural patina of the metal deepens. Polished Chrome holds its mirror finish for decades with proper care. Both reward daily wiping over rough scrubbing.
05 — Specifications
The details.
| Spout height | 7.1 in / 180 mm |
| Spout reach | 7.5 in / 190 mm |
| Handle-to-handle | 8 in / 200 mm centre-to-centre |
| Outlet width | Wide waterfall flat-flow |
| Flow rate | 1.2 GPM at 60 PSI |
| Connection | Standard G3/8" supply lines on each valve, included |
| Installation | 3-hole widespread, 8 inch centres |
| Compatible with | Master bath vanities, double vanities, luxury basins with 3 pre-drilled holes |
| Warranty | 5 years on finish and function |
06 — In the Box

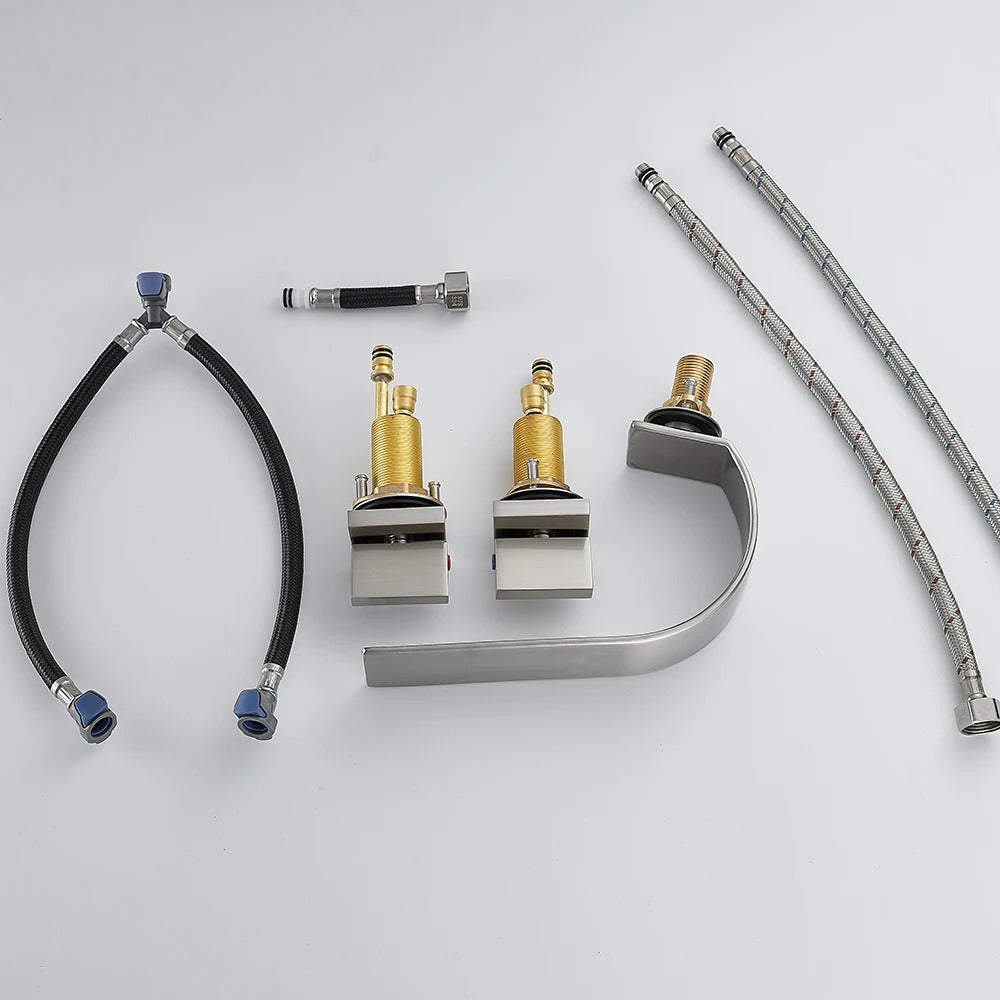

What arrives at your door.
- Arc 09 arch spout in your chosen finish
- Two matching square handles (hot and cold)
- Pre-installed braided supply lines on each valve
- Mounting hardware and weight rings (3 sets)
- Connection hose between handles and spout
- Pop-up drain assembly in matched finish
- Installation guide
- Care card
07 — Care & Installation
How to live with it.
Care. Wipe with a soft, dry cloth after each use to preserve the mirror finish. For mineral deposits, use a mild soap solution and dry with a microfiber. Avoid bleach, abrasives, acidic cleaners, or scouring pads across both finishes — polished surfaces ask for the same gentleness you'd give jewellery.
Installation. Designed for standard 3-hole widespread basins with 8-inch centre-to-centre spacing. Installation is more involved than a single-hole faucet and typically takes 60 to 90 minutes with basic tools. The guide is written for someone doing this for the first time, but professional installation is strongly recommended for first-time widespread installations.
Considered, or returned.
If Arc 09 doesn't feel right in your space, return it within 30 days. We arrange the pickup, refund the full amount, and ask only one thing — that you tell us why.
Quality-checked before dispatch.
Every faucet is inspected for finish, function, and packaging integrity before it leaves our facility.
Honest shipping.
Dispatched within 2 business days. Delivered across India in 4 to 7 business days through verified courier partners. Real-time tracking shared on dispatch.
5-year warranty.
Covers both the finish and the internal mechanism. If something fails through normal use, we replace it.
Real support.
Email hello@origincurio.com. Replies within one business day, from someone who knows the product.
Secure checkout.
All transactions processed through encrypted, verified payment gateways. Your data isn't stored, sold, or shared.
Arc 09 is the ninth piece in the Arc Series. Architectural luxury, drawn in three pieces.
